8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty

TTI Fiber Communication Tech. Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty

  • 1
  • 2

Brand Name : TTI

Model Number : 1X8 distribution box

Certification : CE/ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 1000pcs/day

Delivery Time : 3-5 working days

Packaging Details : single one in a single box then some boxes in a carton

Material : PC/ABS

Fiber port : 8 ports

Accommodate PLC : 1X8 PLC splitter

Suitable adapter : SC/LC adapter

Color : white

Package : independent box

Application : FTTH /FTTX

Installation : wall and pole mounted

Warranty : 10 years

Contact Now

8 Ports Fiber Optic Distribution Box With SC/APC Adapter and Pigtail

Features

8-1: Protects and manages cable effectively

8-2: Secured with anti-theft locking mechanism

8-3: Standard size, light weight

8-4: High quality PC +ABS material

8-5: Good properties of dust, and moisture proofing,IP65

8-6: Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

8-7: Suitable for SC and LC duplex adaptor and pigtail

8-8: Easy to operate

Application

CATV network

FTTH access network

Telecommunication network

Data communication network

Technical Data

Item Parameter
Type FD-08
Mounting way wall mounting or pole mounting
Working temperature -40℃~+85℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation T he grounding device is insulated with the Termination box, IR ≥1000m /500V (direct current)
Withstand Voltage

Between the grounding device and the box body, the withstand voltage is over 3000V/Min,

no breakdown and flash over. U ≥3000V (direct current)

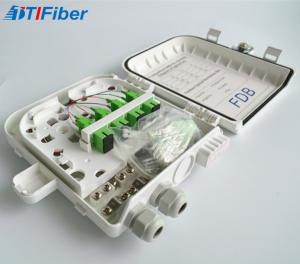

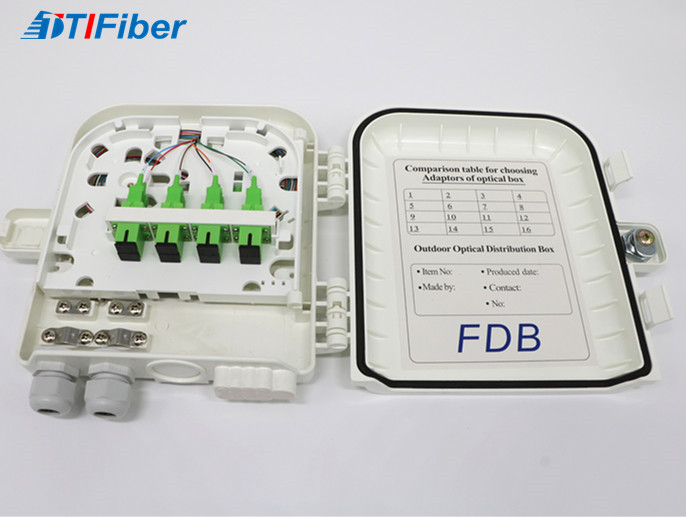

Product pictures

8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty

Company information

8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty8 Ports Fiber Optic Distribution Box SC/APC Adapter / Pigtail 10 Years Warranty
