Multifiber 0.9mm,2.0mm SC/LC/FC/ST/MTRJ Connectors Fiber Optic Patch Cord

Brand Name : TTI

Model Number : SM

Certification : CE/ROHS

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, T/T, D/P, , ,paypal

Supply Ability : 1000pieces /week

Delivery Time : 5-7 work days

Packaging Details : boxes

Name : Fiber Optic Patch Cord

type : SC/LC/ST/FC

colour : yellow

application : Fiber optic network, data central, Cabinet cabling

Material : PVC

Fiber : SM/OM1/OM2/OM3/OM4

Cores : 2Core-144Core

Contact Now

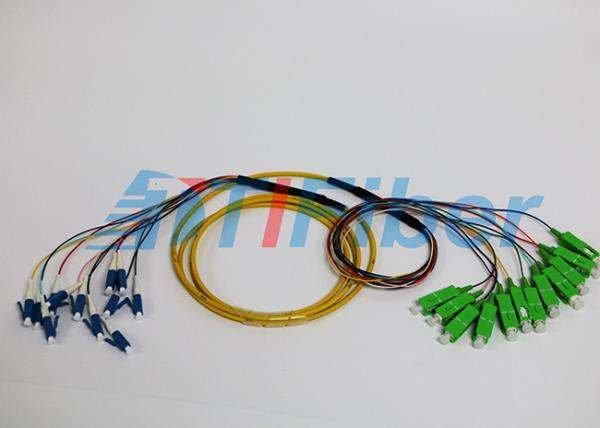

Custom breakout cable 2-144 Core Pre Terminated cable Strip on 0.9mm,2.0mm SC/LC/FC/ST/MTRJ Connectors

Features

1.CE,RoHS,ISO9001

2.High reliability,low insertion loss

3.100% Manufacturer

4.IL<=0.2dB,RL>=55d

5.full tested for all of productes customers’ ordered

6.free samples provided

Multifiber 0.9mm,2.0mm SC/LC/FC/ST/MTRJ Connectors Fiber Optic Patch Cord

About fiber patch cord

Fiber optic jumper is one of the most commom components connecting from the equipment to the fiber optic lind .It is mormally used between the optical line teminal with the optical cable terminal box with thick protection layer.

1.Using high precision ceramic ferrule

2.rubbing exactitude and testing completelly

3. low insertion loss and high return loss

4. high stability and repeat

5.be according with the telcordia GR-326-CORE standard

Application

1.Telecom Network

2.LAN and WAN

3.CCAV and cable TV

4.Multimedia

5.Active device termination

6.Testing equipment

7.Data processing system

8.Premise installation

ter	Unit	FC, SC, LC				ST, MU			MT-RJ, MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310, 1510				1310, 1510			1310, 1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	℃	-40~75				-40~75			-40~75
Storage temperature	℃	-45~85				-45~85			-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9				φ3.0, φ2.0, φ0.9			φ3.0, φ2.0, φ0.9

ter	Unit	FC, SC, LC				ST, MU			MT-RJ, MPO
		SM			MM	SM		MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30	≥45	≥50	≥35
Operating wavelength	nm	1310, 1510				1310, 1510			1310, 1510
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Vibration	dB	≤0.2				≤0.2			≤0.2
Operating temperature	℃	-40~75				-40~75			-40~75
Storage temperature	℃	-45~85				-45~85			-45~85
Cable diameter	mm	φ3.0, φ2.0, φ0.9				φ3.0, φ2.0, φ0.9			φ3.0, φ2.0, φ0.9

Multifiber 0.9mm,2.0mm SC/LC/FC/ST/MTRJ Connectors Fiber Optic Patch Cord
