SC/APC - SC/APC 1.6mm SM SX G657A Aqua Fiber Optic Patchcord 1.5m 3.5m

TTI Fiber Communication Tech. Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

SC/APC - SC/APC 1.6mm SM SX G657A Aqua Fiber Optic Patchcord 1.5m 3.5m

  • 1
  • 2

Brand Name : TTI

Model Number : SC/APC-SC/APC Patchcord

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : D/A, D/P, T/T, , ,

Supply Ability : 10000 pieces

Delivery Time : 5-8 Work Days

Packaging Details : Standard Package(Surport OEM/ODM)

Name : SC/APC-SC/APC Patchcord

Connector : FC,LC,SC,ST,MPO,DIN,D4,MU

Diameter : 0.9mm/2.0mm/3.0mm

Application : Telecommunication

Insertion Loss : ≤0.2dB

Length : 1M/3M/5M/10M/Customization

Material : PVC/LSZH

Use : FTTH/FTTA/FTTX

Contact Now

Fiber Optic Patchcord SC/APC-SC/APC 1.6mm SM Simplex G657A2 1m 1.5m 3.5m Aqua LSZH Sheath

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

1. Feature

(1) Low insertion loss and back reflection loss

(2) Good echangeability

(3) Good Durability

(4) High temperature stability

(5) Standard: Telcordia GR-326-CORE

2. Application
(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application

3. Speciafication
MODEL NO
Fiber Optic Patch Cord
Fiber Type
SM G657A2
Cable Assembilies
Simplex
Jacket Material
LSZH
Cable Diameter (mm)
1.6MM
Connector Type
SC
End Face
UPC / APC
Working Wavelength (nm)
1310/1550
Insertion Loss (dB)
≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)
UPC ≥50dB APC ≥60dB
Exchangeability
≤0.2dB
Operating Temperature(℃)
-40~85
Storage Temperature(℃)
-40~85

4. Product Details

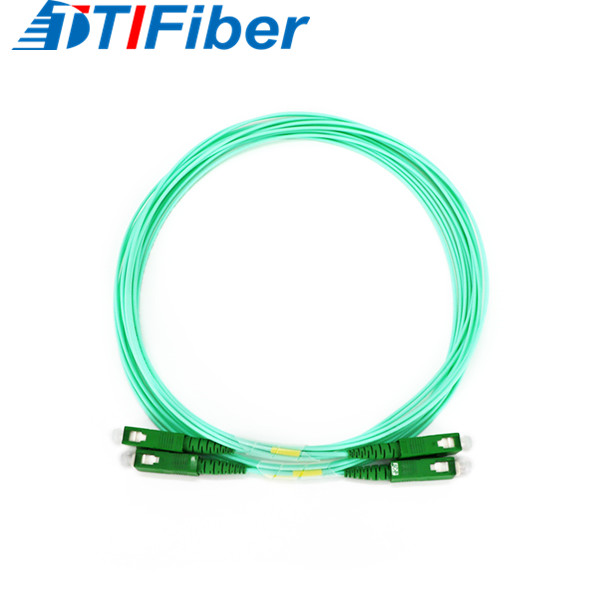

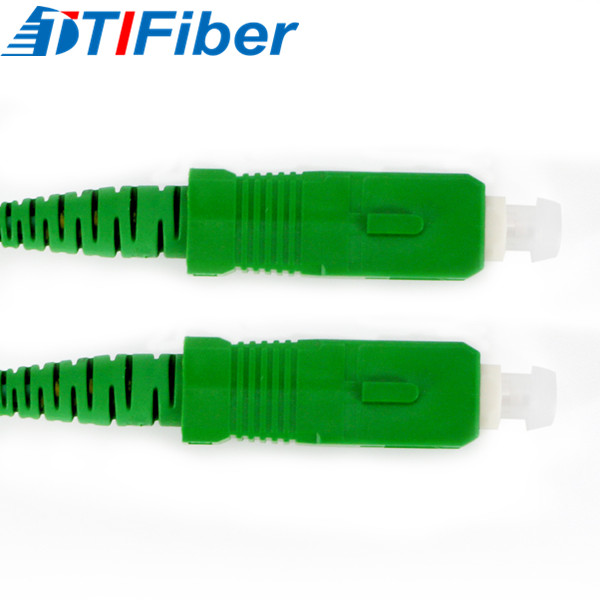

SC/APC - SC/APC 1.6mm SM SX G657A Aqua Fiber Optic Patchcord 1.5m 3.5m

SC/APC - SC/APC 1.6mm SM SX G657A Aqua Fiber Optic Patchcord 1.5m 3.5m

SC/APC - SC/APC 1.6mm SM SX G657A Aqua Fiber Optic Patchcord 1.5m 3.5m

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
