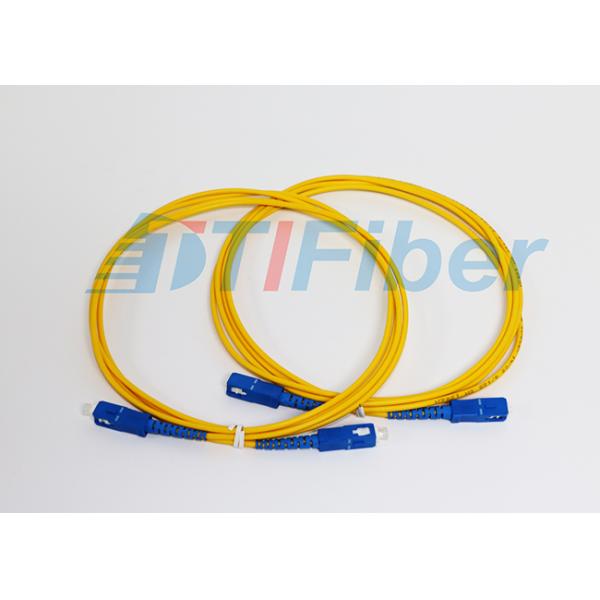

SC / UPC Simplex fiber patch cord single mode for FTTH Network , Customized Length

Product Categories

TTI Fiber Communication Tech. Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : TTI

Model Number : SC/UPC

Certification : ROHS, SGS, ISO9001

Place of Origin : China Mainland

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , PayPal, Monthly

Supply Ability : 7000pcs/Day

Delivery Time : in 2-4 days

Packaging Details : 1pcs/PE bag

Connector : SC

Inner : Ceramic

Jacket : PVC, LSZH, OFNP, OFNR

Cable Diameter : 0.9mm,2.0mm Or 3.0mm

Ferrule End -face : PC, UPC, APC

Cable Length : 1M; 2M; 3M Etc., Can Be Customized

Fiber Mode : Singlemode

Cable core : Simplex

Contact Now

SC / UPC Simplex fiber patch cord single mode for FTTH Network , Customized Length

Features:

Application:

Specification:

Parameter		Single Mode			Multi Mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations:<=1um			127um concentricity deviations:<=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40°C ~ +85°C

Packing:

One piece per PE bag with stick label (we could add customer's logo in the label.)

Shipping:

SC / UPC Simplex fiber patch cord single mode for FTTH Network , Customized Length
